300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment
  • 300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment
  • 300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment
  • 300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment
  • 300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment

300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment

Place of Origin China
Brand Name CNKHONG
Model Number KH-MBRP-150-PVDF
Product Details
Material:
PVDF
Size:
510x1750x7mm
Weight:
4.5kg
Water Flux:
540-800L/piece/day
SS:
<1
Rack:
SS304
High Light:

300m2 hollow fiber mbr membrane

,

4.5kg hollow fiber mbr membrane

,

300sqm mbr ultrafiltration water treatment

Product Description

300m2 Flat MBR SS304 Rack Bio Reactor for Sewage Treatment with PVDF material 0.1um pore size

Flat Sheet Membrane

A flat sheet membrane is a thin, flexible, and porous material used in filtration and separation processes. It consists of a flat sheet of polymer material, such as polyethersulfone (PES), polyvinylidene fluoride (PVDF), or polyamide (PA), with a micro- or ultrafiltration layer on one or both sides. The membrane can have various pore sizes, ranging from a few nanometers to a few micrometers, depending on the application.

Flat sheet membranes are commonly used in industrial applications such as water treatment, food and beverage processing, pharmaceutical production, and biotechnology. They can be used for liquid filtration, gas separation, and membrane-based separations, such as reverse osmosis, nanofiltration, and ultrafiltration.

The advantages of using flat sheet membranes include high selectivity, high flux rates, and easy scalability. They are also easy to maintain and replace, making them a cost-effective solution for many separation applications.

Features:



There are several advantages of using flat sheet membranes in filtration and separation processes, including:

  1. High selectivity: Flat sheet membranes can effectively remove contaminants and impurities from liquids and gases with high selectivity, allowing for the production of high-quality products.

  2. High flux rates: The thin and porous structure of flat sheet membranes allows for a high flux rate, meaning that a large volume of liquid or gas can be processed in a short amount of time.

  3. Easy scalability: Flat sheet membranes can be easily scaled up or down to meet the needs of different applications, making them versatile and adaptable to a range of industrial processes.

  4. Cost-effective: Flat sheet membranes are typically less expensive than other membrane types, making them a cost-effective solution for many separation applications.

  5. Easy to maintain and replace: Flat sheet membranes are easy to clean and replace, which can help reduce downtime and maintenance costs in industrial processes.

  6. Environmentally friendly: Flat sheet membranes can help reduce waste and pollution in industrial processes by effectively removing contaminants and impurities from liquids and gases.





Product Description




Membrane Bioreactor MBR sheet (pcs.)



Items Standard type Long type
Model KH-MBRP-80-PVDF KH-MBRP-150-PVDF
Size (LxWxT) 1000×490×7 1750×510×7
Membrane effective area (m²) 0.8 1.5
Weight (kg) 3 4.5
Permeate flux [L/ (pc.d)] 320-480 600-900
Membrane material PTFE PTFE
Membrane pore size (μm) 0.1 0.1
Plate material ABS ABS
Air flow rate [L/(min.pc)] ≥ 10 ≥ 12
pH 2 ~ 13 2 ~ 13
Output turbidity (NTU) < 1.0 < 1.0
Output SS (mg/1) ≤ 1.0 ≤ 1.0
Chemical cleaning ~ 5,000mg/1 NaCIO ~ 5,000mg/1 NaCIO







Module*(All customized models are available by online inquiry)

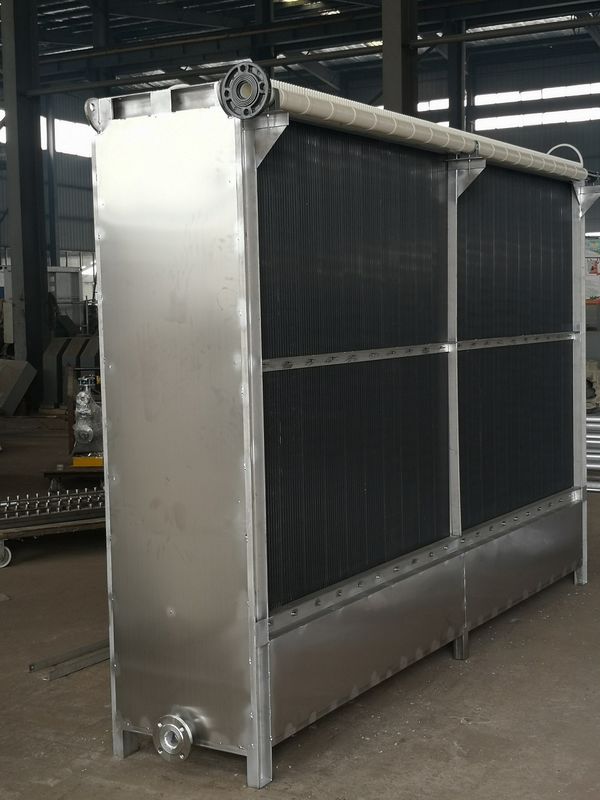

Membrane Module

KH-MBRP80-120 KH-MBRP80-100 KH-MBRP150-120 KH-MBRP150-150
Flux(m3/d) 30-50 25-40 60-90 75-110
Number of membrane elements (pcs.) 120 100 120 150
Membrane effective area (m²) 96 80 180 225
Size (LxWxT)(mm) 1900×600×1500 1600×600×1500 1900×630×2350 2350×630×2350
Frame material SUS304
Plate material ABS



Application






300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment 2

300m2 Flat MBR Membrane with 0.1um pore size For Sewage Treatment 3
