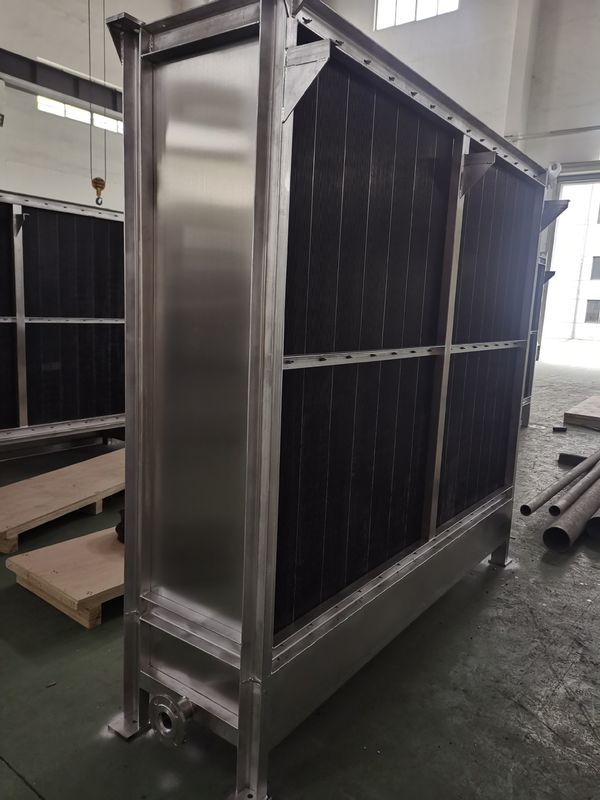

Customized Flat MBR Double Deck for Sewage Treatment with PVDF material 0.1um pore size
Flat MBR
A flat membrane bioreactor (MBR) is a type of wastewater treatment system that uses flat sheet membranes to filter and separate solid materials from liquid in a biological process. The system combines biological treatment and membrane filtration into a single step to achieve high-quality effluent.
MBR (Membrane Bioreactor) process is a combination of biological wastewater treatment and filtration. Biodegradable pollutants are reduced using bacteria and microorganisms. Following biological treatment, activated sludge is separated from the treated water by flat sheet membrane with a nominal pore size of 0.1 microns densely distributed along the membrane surface.
Our products improve membrane packing density by our unique element fabrication technology, then that leads 30 percent increase in capacity at the same footprint and lower air scour requirement of rigid plate MBR models.
Flat membrane bioreactors have several advantages over conventional wastewater treatment methods. They require less space, produce higher quality effluent, and generate less sludge. They are also highly efficient at removing nitrogen and phosphorus, which are common pollutants in wastewater.
Our membrane products are well-regarded in the industry for their quality, durability, and performance. OUrproducts have been proven effective in a variety of applications, and our ongoing research and development efforts ensure that we continue to offer innovative membrane solutions for the wastewater treatment industry.
Flat MBR Module
| Items | Standard type | Long type |
| Model | KH-MBRP-80-PVDF | KH-MBRP-150-PVDF |
| Size (LxWxT) | 1000×490×7 | 1850×510×7 |
| Membrane effective area (m²) | 0.8 | 1.5 |
| Weight (kg) | 3 | 4.5 |
| Permeate flux [L/ (pc.d)] | 320-480 | 600-900 |
| Membrane material | PVDF/PTFE | PVDF/PTFE |
| Membrane pore size (μm) | 0.1 | 0.1 |
| Plate material | ABS | ABS |
| Air flow rate [L/(min.pc)] | ≥ 10 | ≥ 12 |
| pH | 2 ~ 13 | 2 ~ 13 |
| Output turbidity (NTU) | < 1.0 | < 1.0 |
| Output SS (mg/1) | ≤ 1.0 | ≤ 1.0 |
| Chemical cleaning | ~ 5,000mg/1 NaCIO | ~ 5,000mg/1 NaCIO |
Module*(All customized models are available by online inquiry)
|
Membrane Module |
KH-MBRP80-120 | KH-MBRP80-100 | KH-MBRP150-120 | KH-MBRP150-150 |
| Flux(m3/d) | 30-50 | 25-40 | 60-90 | 75-110 |
| Number of membrane elements (pcs.) | 120 | 100 | 120 | 150 |
| Membrane effective area (m²) | 96 | 80 | 180 | 225 |
| Size (LxWxT)(mm) | 1900×600×1500 | 1600×600×1500 | 1900×630×2350 | 2350×630×2350 |
| Frame material | SUS304 | |||
| Plate material | ABS | |||
