4040W Ultrafiltration Membrane
  • 4040W Ultrafiltration Membrane

4040W Ultrafiltration Membrane

Place of Origin China
Brand Name CNKHONG
Model Number KH-UF-6040W-PVDF
Product Details
Material:
PVDF+UPVC
Pore Size:
0.05um
ID/OD:
1.0/2.0
Membrane Area:
8m2
Water Flux:
50-80LMH
Working Temperature:
1-40C
Highlight:

4040W Ultrafiltration Membrane

,

UPVC PVDF Ultrafiltration Membrane

,

8m2 uf system water treatment

Product Description

6040W Ulta-filtration Membrane Modules for Purified Water Treatment with Pore Size 0.05um PVDF material





1. Brief Introduction

Ultrafiltration (UF) involves pressure-driven separation of materials from a feed solution. The technology is used to remove particulate and microbial contaminants, but it does not remove ions and small molecules. Pressure drives the process, which typically operates with a feed pressure of 4 to 100 psi. UF plants are automated and have low operational labor requirements. UF membranes have a service life of three to five years or longer, which is comparable to reverse osmosis membranes.

UF modules are commercially available in tubular, hollow-fiber, plate and frame, and spiral wound configurations.

UF membranes reject solutes ranging size from 0.01 microns to 0.1 microns. Equal to the molecular weight cut-off (MWCO) 1000-500,000 daltons.

Different membrane materials with the same nominal MWCO may have different rejection rate. Because the pore size distribution and uniformity affect the reject performance.

The chemical nature of the membrane material also affect the membrane fouling-rejection.

So the membrane flux rate, rejection performance and anti-pollution performance are most important for different UF modules.



2. Description of ultrafiltration modules

2.1 Module Features

The CNKHONG Ultrafiltration modules are made of high strength hollow fiber membranes, they are made of Polyvinylidene Fluoride(PVDF). The pore size of 0.03 µm is enough for the removal of bacteria, viruses, and particles including all kinds of colloids. v

The membranes have been special treated to be hydrophilic. It is easy cleaning and wettability that help maintain long term performance. v Out to In flow configuration can endure high tolerance of feed solids. They also can be used pressed air to help the cleaning recovery.

The dead-end filtration way offer higher recovery rate and energy savings. The largest water recovering rate can be more can 95%.





2.2 Structure and Specifications of  UF Membrane Modules

2.2.1 Small size of UF modules








Size and weight



Model KH-UF-4040W-PVDF KH-UF-6040W-PVDF
Module Diameter ( A, mm) Φ90 mm Φ160 mm
Module Length ( B, mm) 960mm 960mm
Module Length (C, mm) 1106 mm 1304 mm
Size of Inlet/Outlet (D, mm) DN25 DN32
Operating Type Outside to Inside Outside to Inside
Membrane Area 8.0 m2 20 m2
Dry weight of the module 5 Kg 12 Kg











Parameters

Shell material UPVC UPVC
Membrane Material PVDF PVDF
Membrane pore size 0.03μm 0.03μm
Inner diameter of the hollow fiber 0.7 mm 0.7 mm
Outer diameter of the hollow fiber 1.3mm 1.3mm
Turbidity of Permeating water ≤ 0.2NTU ≤ 0.2 NTU

SDI value of permeating water



≤ 3 ≤ 3

Flux rate of purified water

(0.10MP,20℃)

≥1000L/H ≥3000L/H









Typical Process



Temperature Range 5-45 ℃ 5-45 ℃
PH Value Range 2-13 2-13

Permeating Flux rate for different

Water

40 - 80 l/m2/hr 40 -80 l/m2/hr
Operating Pressure ≤0.12 MPa ≤0.12MPa
Maximum Inlet Pressure 0.2 MPa 0.2MPa
Backwashing flux rate

1.5-2.0 times of

Permeating Flux

1.5-2.0 times of

Permeating Flux

Backwashing times Once per 30-120 minutes Once per 30-120 minutes
Chemical cleaning online during backwashing Once per 7-14 days Once per 7-14 days


The structure as the following:2.2.2 type A of 8 inches UF module.








Size and weight



Model KH-UF-8040W-PVDF KH-UF-8060W-PVDF
Module Diameter ( A, mm) Φ200 mm Φ200 mm
Module Length ( B, mm) 1220 mm 1640 mm
Module Length (C, mm) 1365 mm 1785 mm
Size of Inlet/Outlet DN50 DN50
Operating Type Outside to Inside Outside to Inside
Membrane Area 30 m2 45 m2
Dry weight of the module 20 Kg 35 Kg











Parameters

Shell material UPVC UPVC
Membrane Material PVDF PVDF
Membrane pore size 0.03μm 0.03μm
Inner diameter of the hollow fiber 0.7 mm 0.7 mm
Outer diameter of the hollow fiber 1.3mm 1.3mm
Turbidity of Permeating water ≤ 0.2NTU ≤ 0.2 NTU

SDI value of permeating water



≤ 3 ≤ 3

Flux rate for of purified water

(0.10MP,20℃)

≥ 3600L/H ≥ 5400L/H









Typical Process



Temperature Range 5-45 ℃ 5-45 ℃
PH Value Range 2-13 2-13

Permeating Flux rate for different

Water

40 - 80 l/m2/hr 40 -80 l/m2/hr
Operating Pressure ≤0.12 MPa ≤0.12MPa
Maximum Inlet Pressure 0.2 MPa 0.2MPa
Backwashing flux rate

1.5-2.0 times of

Permeating Flux

1.5-2.0 times of

Permeating Flux

Backwashing times Once per 30-120 minutes Once per 30-120 minutes
Chemical cleaning online during backwashing Once per 7-14 days Once per 7-14 days


2.2.3 type B of 8 inches UF module. The structure as the following:










Size and weight



Model KH-UF-SFX2860-PVDF KH-UF-SFX2880-PVDF
Module Diameter (OD, mm) Φ225 mm Φ225 mm
Module Length ( L1, mm) 1500 mm 2000 mm
Module Length (L2, mm) 1630 mm 2130 mm
Module Length (L3, mm) 1820 mm 2320 mm
Module Length (L , mm) 1860 mm 2360 mm
Operating Type Outside to Inside Outside to Inside
Membrane Area 52 m2 77 m2
Dry weight of the module 42 Kg 62 Kg











Parameters

Shell material UPVC UPVC
Membrane Material PVDF PVDF
Membrane pore size 0.03μm 0.03μm
Inner diameter of the hollow fiber 0.7 mm 0.7 mm
Outer diameter of the hollow fiber 1.3mm 1.3mm
Turbidity of Permeating water ≤ 0.2NTU ≤ 0.2 NTU

SDI value of permeating water



≤ 3 ≤ 3

Flux rate of purified water

(0.10MP,20℃)

≥ 6500L/H ≥ 8000L/H









Typical Process



Temperature Range 5-45 ℃ 5-45 ℃
PH Value Range 2-13 2-13

Permeating Flux rate for different

Water

40 - 80 l/m2/hr 40 -80 l/m2/hr
Operating Pressure ≤0.12 MPa ≤0.12MPa
Maximum Inlet Pressure 0.2 MPa 0.2MPa
Backwashing flux rate

1.5-2.0 times of

Permeating Flux

1.5-2.0 times of

Permeating Flux

Backwashing times Once per 30-120 minutes Once per 30-120 minutes
Chemical cleaning online during backwashing Once per 7-14 days Once per 7-14 days

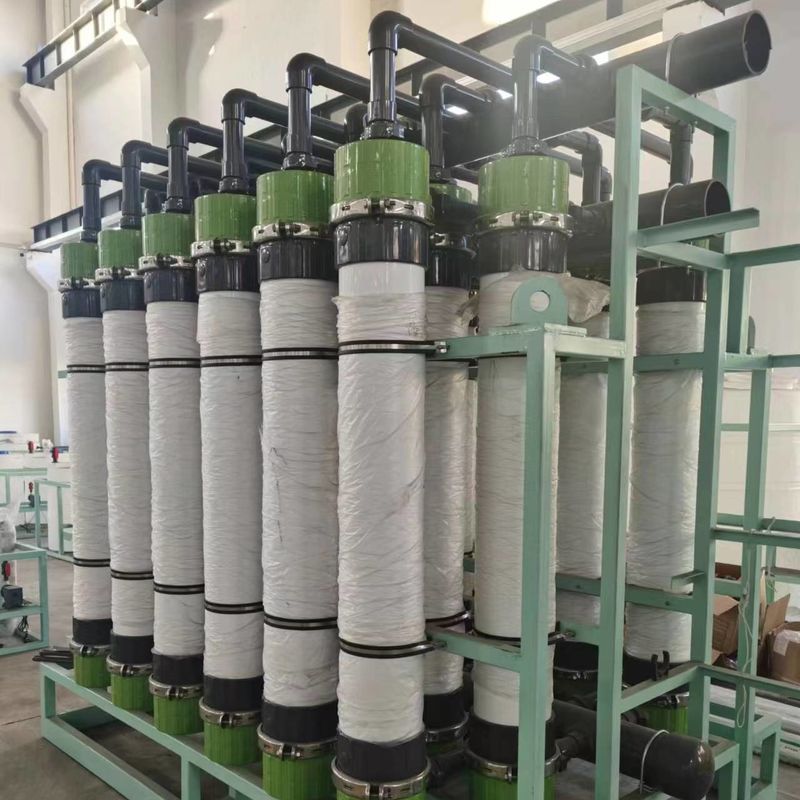

The whole installation and application process of our MBR modules are described as the following photo:









4040W Ultrafiltration Membrane 34040W Ultrafiltration Membrane 4



4040W Ultrafiltration Membrane 5
