225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment
  • 225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment
  • 225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment
  • 225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment

225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment

Place of Origin China
Brand Name CNKHONG
Model Number Customized
Product Details
Pore Size:
Water Flux:
Temperatrue Scope:
Input Water Pressure:
High Light:

225mm Ultrafiltration Membrane


0.03um Ultrafiltration Membrane


52m2 uf system water treatment

Product Description

Ultra-filtration Membrane System for Pure Water Purification with PVDF 0.03um pore size


 Ultrafiltration (UF) modules are made from high strength, hollow fiber membranes that have excellent features and benefits: • 0.03 µm nominal pore diameter for removal of bacteria, viruses, and particulates including colloids to protect downstream processes such as RO • PVDF polymeric hollow fibers for high strength and chemical resistance allows long membrane life • Hydrophilic PVDF fibers for easy cleaning and wettability that help maintain long term performance • Outside In flow configuration for high tolerance to feed solids that help reduce the need for pretreatment processes • U-PVC housing, helping to eliminate the need for costly pressure vessels This module is an ideal choice for systems with capacities greater than 50 m3/hr (220 gpm). The larger, 8 inch diameter module offers the highest effective membrane area of the UF modules, which contributes to a more economical membrane system design. The shorter, 60 inch length module offers higher efficiencies over a wider range of feed water conditions compared to longer length modules. Ultrafiltration modules can be used for a wide variety of treatment applications such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.

2.2.3 type B of 8 inches UF module. The structure as the following:





Size and weight


Module Diameter (OD, mm) Φ225 mm Φ225 mm
Module Length ( L1, mm) 1500 mm 2000 mm
Module Length (L2, mm) 1630 mm 2130 mm
Module Length (L3, mm) 1820 mm 2320 mm
Module Length (L , mm) 1860 mm 2360 mm
Operating Type Outside to Inside Outside to Inside
Membrane Area 52 m2 77 m2
Dry weight of the module 42 Kg 62 Kg







Shell material UPVC UPVC
Membrane Material PVDF PVDF
Membrane pore size 0.03μm 0.03μm
Inner diameter of the hollow fiber 0.7 mm 0.7 mm
Outer diameter of the hollow fiber 1.3mm 1.3mm
Turbidity of Permeating water ≤ 0.2NTU ≤ 0.2 NTU

SDI value of permeating water


≤ 3 ≤ 3

Flux rate of purified water


≥ 6500L/H ≥ 8000L/H





Typical Process


Temperature Range 5-45 ℃ 5-45 ℃
PH Value Range 2-13 2-13

Permeating Flux rate for different


40 - 80 l/m2/hr 40 -80 l/m2/hr
Operating Pressure ≤0.12 MPa ≤0.12MPa
Maximum Inlet Pressure 0.2 MPa 0.2MPa
Backwashing flux rate

1.5-2.0 times of

Permeating Flux

1.5-2.0 times of

Permeating Flux

Backwashing times Once per 30-120 minutes Once per 30-120 minutes
Chemical cleaning online during backwashing Once per 7-14 days Once per 7-14 days




Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed. Please refer to the product technical manual.

Avoid any abrupt pressure variations during start-up, shutdown, cleaning or other sequences to prevent possible membrane damage. Flush the UF system to remove shipping solution prior to start up. Remove residual air from the system prior to start up. Manually start the equipment. Target a permeate flow of 60% of design during initial operations. Depending on the application, permeate obtained from initial operations should be discarded. Please refer to the product technical manual

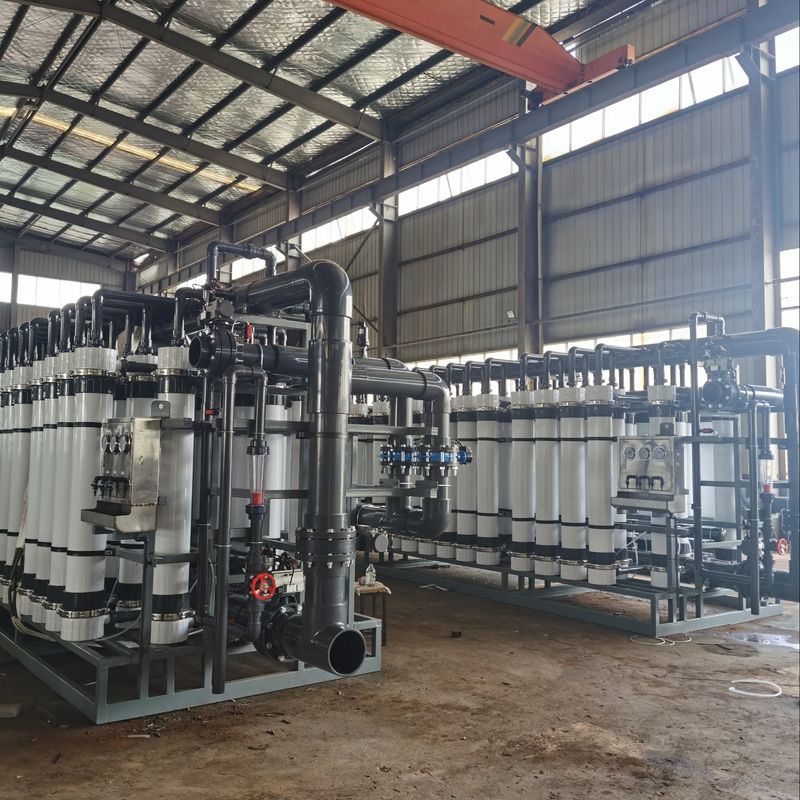

The whole installation and application process of our UF modules are described as the following photo:

225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment 1

225mm 0.03um Ultrafiltration Membrane 52m2 Uf System Water Treatment 2
