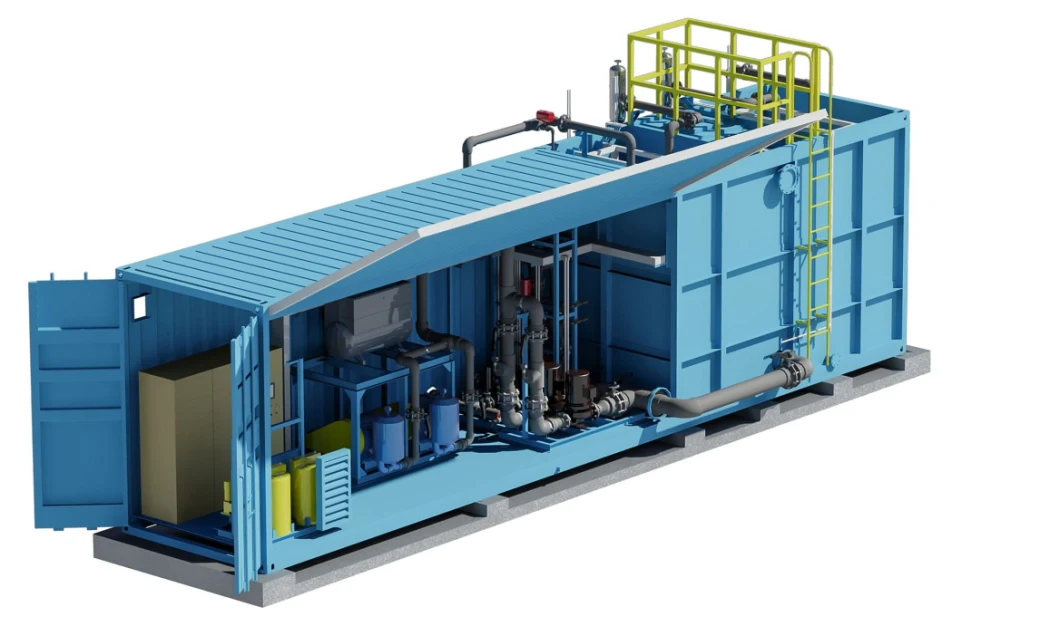

Customized Integrated MBR Equipment Hollow Fiber Membrane Module

Customized Integrated MBR Equipment for for Wasterwater Treatment Plant

Membrane bioreactor is a high-efficiency sewage treatment technology that combines membrane separation technology and traditional sludge process. With the filtration effect, the organisms are completely trapped in the bioreactor, which realizes the complete separation of water and sludge, and maintains a high MLSS in the bioreactor. Strong nitrification ability and high pollutant removal rate.

Replacing the end secondary sedimentation tank of traditional biological treatment technology with membrane modules, maintaining a high concentration of activated sludge in the bioreactor, increasing the organic load of biological treatment, thereby reducing the footprint of sewage treatment facilities, and reducing residual sewage by maintaining low sludge load amount of mud. It mainly uses activated sludge and macromolecular organic matter in the retention tank of the membrane separation equipment immersed in the aerobic biological tank. The concentration of activated sludge in the membrane bioreactor system can be increased to 8000~10,000mg/L, or even higher; the sludge age (SRT) can be extended to more than 30 days.

1. A/O biological contact oxidation process is used as the main process, elastic three-dimensional fillers are set in the A-level pool, and three-dimensional columnar elastic fillers are set in the O-level pool, with large specific surface area and high microbial activity, which can quickly remove organic pollutants and have a good denitrification effect. .The specific surface area of the filler is 16-20 times that of the ordinary solid filler, which shortens the biochemical time and greatly reduces the floor space.
2. The equipment can be buried underground: basically does not occupy the surface area, does not need to build a house, heat preservation, and the surface can be greened for driving.
3. Easy to manage and maintain.
4. Small impact on the surrounding environment.

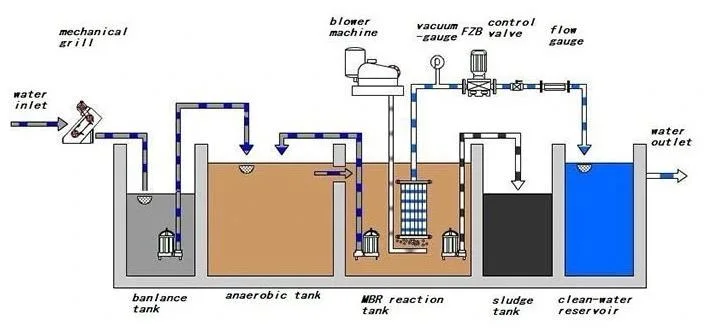

Treating Process with Membrane BIoreactor(MBR)

Specification of the MBR systems

Applying Plant of Integrated MBR Systems

. Why Choose US?

1). Over 16 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system
6). Located in Jiangsu, convenient export transportation.

8. Our Service

1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like pp, PVDF,reinforced PVDF etc.,can be customize according to your requirements
5). 12months warranty

9. FAQ

Q: Are you trading company or manufacturer?
A:We are the leading professional manufacturer in China, more than 16 years experience in the waste water treatment.
Q:What about the lead time?
A:Sample needs within 3 days, mass production needs 1-2 weeks after down payment.
Q:Can I have a sample order for UF/MBR Membrane?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Is it acceptable to print my logo on UF Membrane product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
