UF Membrane for Drinking Water Pretreatment with Pore Size 0.05um PVDF material
Ultrafiltration(UF) technology is an advantage membrane separation technology with physical filtering principle, and apply widely in municipal wastewater or other industries.
UF is a membrane separation process by drive pressure, it has the rejective ability with porosint material to separate insoluble or soluble substances from water. The filtration pore is general range of 0.01-0.1μm, and removes the most of particles, solids, colloid, rust, sediment, virus, bacteria and macromolecules, the smaller UF pore and the higher rejection rate. And the filtration process is at room temperature, no phase change and no re-pollution.
MS provides three kinds of material UF membrane, they are PVDF UF membrane, PES UF membrane and reinforced PVDF Ultrafiltration membrane. And the PVDF/PES UF membrane is made for hollow filber UF membrane, which has the features of smooth surface, easy cleaning, less fouling and energy saving.
Ultrafiltration membrane systems conserve energy with minimal operation and labour costs. The ability to retain high concentrates minimises disposal costs for a wide range of industries. In the bid to conserve water, using ultrafiltration membrane systems to recycle water can yield zero discharge capabilities. Initial setup cost is low and minimal pretreatment chemicals are required compared to conventional systems.
Application
2.2 Structure and Specifications of CNKHONG UF Membrane Modules
2.2.1 Small size of UF modules
|
Size and weight
|
Model | KH-UF-4040W-PVDF | KH-UF-6040W-PVDF |
| Module Diameter ( A, mm) | Φ90 mm | Φ160 mm | |
| Module Length ( B, mm) | 960mm | 960mm | |
| Module Length (C, mm) | 1106 mm | 1304 mm | |
| Size of Inlet/Outlet (D, mm) | DN25 | DN32 | |
| Operating Type | Outside to Inside | Outside to Inside | |
| Membrane Area | 8.0 m2 | 20 m2 | |
| Dry weight of the module | 5 Kg | 12 Kg | |
|
Parameters |
Shell material | UPVC | UPVC |
| Membrane Material | PVDF | PVDF | |
| Membrane pore size | 0.03μm | 0.03μm | |
| Inner diameter of the hollow fiber | 0.7 mm | 0.7 mm | |
| Outer diameter of the hollow fiber | 1.3mm | 1.3mm | |
| Turbidity of Permeating water | ≤ 0.2NTU | ≤ 0.2 NTU | |
|
SDI value of permeating water
|
≤ 3 | ≤ 3 | |
|
Flux rate of purified water (0.10MP,20℃) |
≥1000L/H | ≥3000L/H | |
|
Typical Process
|
Temperature Range | 5-45 ℃ | 5-45 ℃ |
| PH Value Range | 2-13 | 2-13 | |
|
Permeating Flux rate for different Water |
40 - 80 l/m2/hr | 40 -80 l/m2/hr | |
| Operating Pressure | ≤0.12 MPa | ≤0.12MPa | |
| Maximum Inlet Pressure | 0.2 MPa | 0.2MPa | |
| Backwashing flux rate |
1.5-2.0 times of Permeating Flux |
1.5-2.0 times of Permeating Flux |
|
| Backwashing times | Once per 30-120 minutes | Once per 30-120 minutes | |
| Chemical cleaning online during backwashing | Once per 7-14 days | Once per 7-14 days |

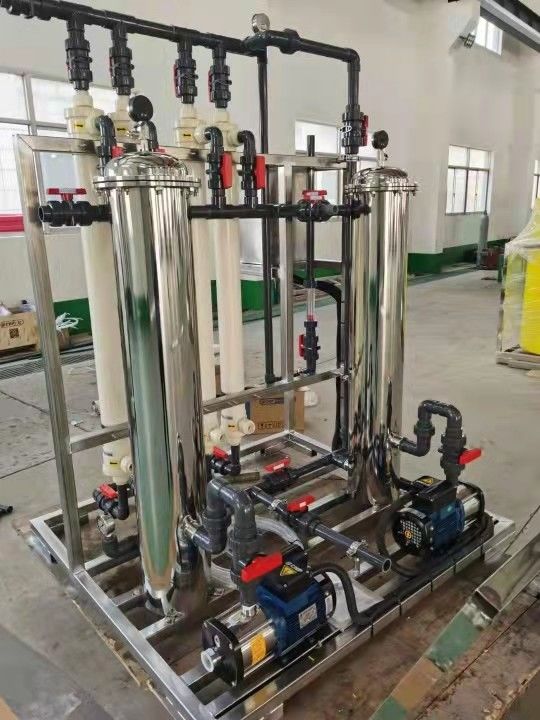

The whole installation and application process of our MBR modules are described as the following photo:
