Hangzhou Kaihong Membrane Technology Co., Ltd.
Mail: cnkhong@163.com TEL: 86-571-88614796
Home > Products > MBR Filter Membrane >

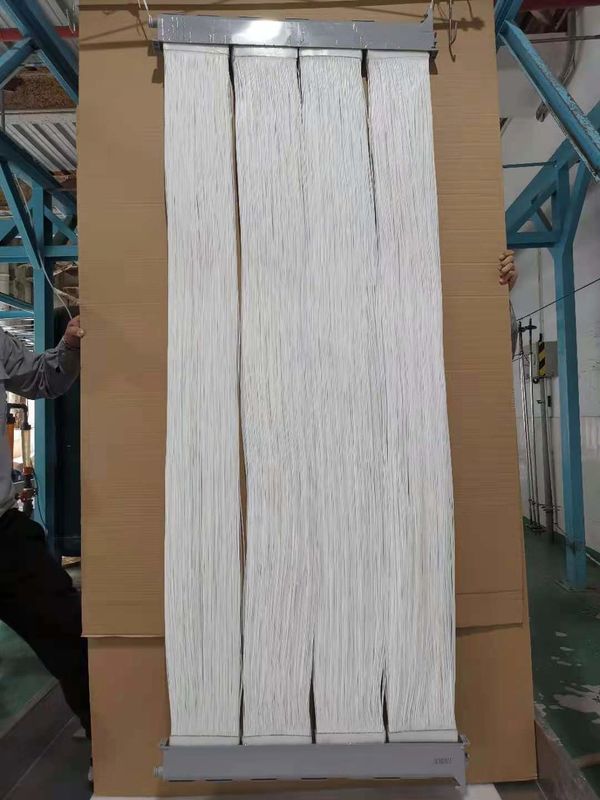

25M2 MBR Filter Membrane
  • 25M2 MBR Filter Membrane
  • 25M2 MBR Filter Membrane

25M2 MBR Filter Membrane

Place of Origin China
Brand Name CNKHONG
Model Number KH-MBR-25-Co-PVDF
Product Details
Material:
Reinforced PVDF
OD/ID:
2.2/1.0mm
Size:
1550x1040x47mm
Flux Rate:
15-20LMH
Transmembrane Pressure:
-0.08MPa
Temperature Scope:
1-40C
High Light:

25M2 MBR Filter Membrane

,

1050mm MBR Filter Membrane

,

25SQM mbr biological treatment

Product Description

25M2 MBR Membrane Elements for Wastewater Treatment with PVDF material



Hot Sales MBR Membrane Modules for Wastewater Treatment with PVDF material



MBR Introduction

Membrane bio-reactor is a kind of new type sewage treatment technique which combine high efficient membrane separation technique and activated sludge manner, it inherit membrane separation technique and biochemical treatment technique feature and intensify biochemical treatment effect, it can used in high organic content municipal or industrial sewage treatment.

2.1 Compare to traditional activated sludge, MBR has the following advantage:

1) 0.05 micro membrane filtering outlet water, the effluent water suspended solid and turbidity can close to zero, can be reuse directly

2) Compare to traditional treatment system, it can save 50% land usable area;

3) Due to membrane high efficient intercept action, micro organism fully intercept in reactor , realize reactor hydraulic retention time and sludge age fully separation, to make operation control more flexible and steady;

4) The micro-organism concentration in bio-reactor can reach 5000-8000 mg/L, with high biochemistry efficiency, strong impact resistance;

5) Long sludge age, in favor of slowly accretion nitrobacteriaIntercepting growth and breed, system nitration efficiency increase;

6) Reactor is operate in high volume loading,low sludge loading,long sludge age condition , surplus sludge discharge volume.

7) Membrane separation to make the big molecule difficult degrade into bioreactor has enough retention time, greatly improve difficult organism degrade efficiency;

3. Technical Parameter of Membrane Module



Item/Model KH-MBR-8-CO-PVDF KH-MBR-12-CO-PVDF KH-MBR-15-CO-PVDF
Membrane Area(M2) 8 12 15
Height 1050 mm 1550 mm 1550 mm
Width 645 mm 645mm 645 mm
Thickness 47 mm 47mm 47mm
Dry Weight 6kgs 10kgs 15 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium hypochlorite 500-3000ppm Sodium hypochlorite

500-3000ppm

Sodium hypochlorite



Item/Model KH-MBR-25-CO-PVDF KH-MBR-30-CO-PVDF KH-MBR-35-CO-PVDF
Membrane Area(M2) 20 30 35
Height 1550 mm 1810 mm 1810 mm
Width 1040 mm 1040 mm 1250 mm
Thickness 47 mm 47mm 35 mm
Dry Weight 20 kgs 25 kgs 30 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium Hypochlorite

500-3000ppm

Sodium Hypochlorite

500-3000ppm

Sodium hypochlorite



2. Typical parameters of MBR units.



1603176159(1)



4.Structure of Membrane Modules and Frames:



A. Structure of MBR Modules

25M2 MBR Filter Membrane 1











B.Structure of MBR Frames

25M2 MBR Filter Membrane 2









5. Product Features



-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

      -- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

      -- Every modules have flexible tubes connecting to collecting pipes.

      -- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

      -- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

      -- Permanent Hydrobility Membrane

      -- Strong strength, the broken strength more than 50MPa



6. Application of MBR Units:

      The whole installation and application process of our MBR modules are described as the following photo:



A. MBR unit of KH-MBRMD-8×8-CO-PVDF with total membrane area of 64 m2/unit.



25M2 MBR Filter Membrane 3





B. MBR unit of KH-MBRMD-15×60-CO-PVDF with total membrane area of 840 m2/unit.



25M2 MBR Filter Membrane 4





Why Choose US?


1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.



Our Service



1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty
