500 To 3000ppm Flat Sheet Membrane Module Membrane Biological Reactor 80M2

 MBR Membrane Elements for Wastewater Treatment with PVDF material

1. MBR Introduction

Hot selling submerged MBR Membrane Bioreactor for Pharmaceutical wastewater treatment is a new-type water treatment technology, integrated with membrane separation unit and biological treatment unit. ( MBR Membrane Microfiltration Systems -- Submerged Membrane Bio-Reactor is used instead of secondary sedimentation tank in the bioreactor to maintain high activated sludge concentration and reduce the land area of wastewater treatment facility and the sludge amount through maintaining low sludge load. The MBR membrane can completely block and retain the microorganisms in the bioreactor through its filtration function, which achieves the complete separation between the hydraulic retention time and activated sludge age, thus avoiding the sludge expansion problem of conventional activated sludge process. Compared with conventional biological water treatment technology, MBR technology has the following main characteristics including high treatment efficiency, good outlet water quality, compact layout, small footprint, easy automatic control and easy operation management.

The principle of MBR Membrane Microfiltration Systems -- Submerged Membrane Bio-Reactor is based upon the separation of solids suspended in a watery solution by means of a pressure difference. While the water permeates through the membrane, the solids, bacteria and even most viruses are retained on the concentrate side on the membrane surface where they are removed by relative movement.

2. Advantages

1) High efficiency in wastewater treatment plant
2) Excellent chemical stability
3) High intensity for backwash
4) Excellent anti-pollution
5) Stable effluent water quality
6) Simple replacement and chemical cleaning
7) Possibility of direct water reuse

2. Typical parameters of MBR units.

4.. Structure of Membrane Modules and Frames:

A. Structure of MBR Modules

B.Structure of MBR Frames

5. Product Features

-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

      -- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

      -- Every modules have flexible tubes connecting to collecting pipes.

      -- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

      -- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

      -- Permanent Hydrobility Membrane

      -- Strong strength, the broken strength more than 50MPa

6. Application of MBR Units:

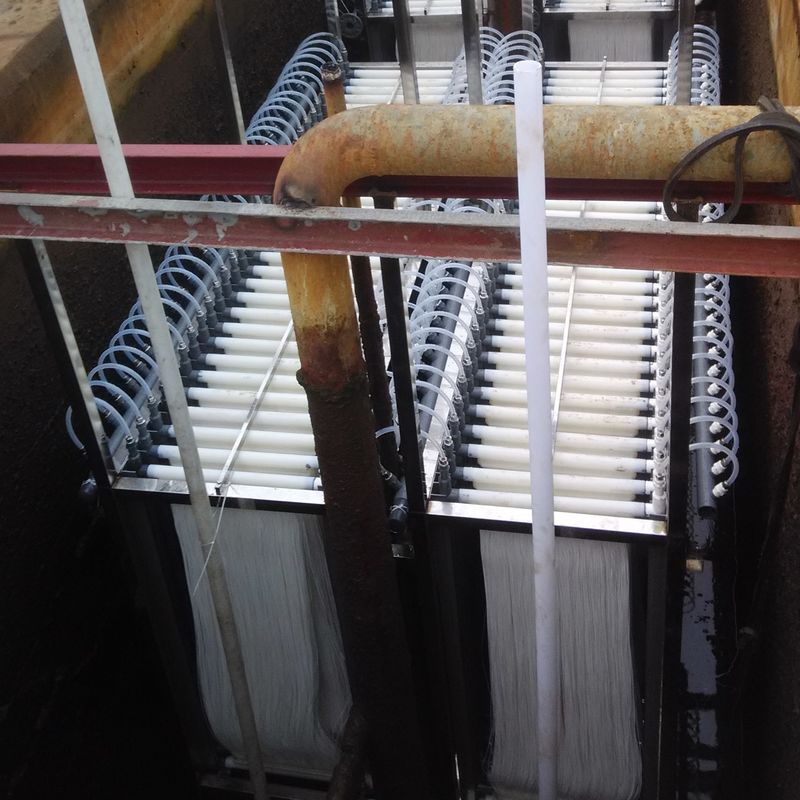

      The whole installation and application process of our MBR modules are described as the following photo:

A. MBR unit of KH-MBRMD-8×8-CO-PVDF with total membrane area of 64 m2/unit.

B. MBR unit of KH-MBRMD-15×60-CO-PVDF with total membrane area of 840 m2/unit.

Why Choose US?

1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.

Our Service

1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty
