| Place of Origin | China |
| Brand Name | CNKHONG |
| Model Number | Customized |
Ultra-filtration Membrane Module for Pure Water Purification with PVDF material
Ultrafiltration is a specialized membrane filtration technology that enhances pressure-mediated suspension of pathogenic and solid waste from waste mixture. The product produced after ultrafiltration is highly pure and free of any pathogenic waste. Most of the characteristics of ultrafiltration are quite similar to membrane-based filtration as ultrafiltration strategy is aligned with semipermeable membrane utilization. The membranes used for ultrafiltration process can be of various types. For instance, micellar enhanced membrane can filtrate complex chemicals using pressure-driven ultrafiltration process. Both micellar and surfactant-based filters can remove heavy metals from waste using ultrafiltration strategies (Tortora et al., 2016; Huang et al., 1994). Besides, artificially produced chemical membranes are also found useful to isolate a wide range of pollutants using ultrafiltration strategies . Thus, as per the users demand and necessity, ultrafiltration membranes are designed to separate specific types of pollutants from waste materials using a pressure-driven process.
2.2 Structure and Specifications of UF Membrane Modules
2.2.1 Small size of UF modules
|
Size and weight
|
Model | KH-UF-4040W-PVDF | KH-UF-6040W-PVDF |
| Module Diameter ( A, mm) | Φ90 mm | Φ160 mm | |
| Module Length ( B, mm) | 960mm | 960mm | |
| Module Length (C, mm) | 1106 mm | 1304 mm | |
| Size of Inlet/Outlet (D, mm) | DN25 | DN32 | |
| Operating Type | Outside to Inside | Outside to Inside | |
| Membrane Area | 8.0 m2 | 20 m2 | |
| Dry weight of the module | 5 Kg | 12 Kg | |
|
Parameters |
Shell material | UPVC | UPVC |
| Membrane Material | PVDF | PVDF | |
| Membrane pore size | 0.03μm | 0.03μm | |
| Inner diameter of the hollow fiber | 0.7 mm | 0.7 mm | |
| Outer diameter of the hollow fiber | 1.3mm | 1.3mm | |
| Turbidity of Permeating water | ≤ 0.2NTU | ≤ 0.2 NTU | |
|
SDI value of permeating water
|
≤ 3 | ≤ 3 | |
|
Flux rate of purified water (0.10MP,20℃) |
≥1000L/H | ≥3000L/H | |
|
Typical Process
|
Temperature Range | 5-45 ℃ | 5-45 ℃ |
| PH Value Range | 2-13 | 2-13 | |
|
Permeating Flux rate for different Water |
40 - 80 l/m2/hr | 40 -80 l/m2/hr | |
| Operating Pressure | ≤0.12 MPa | ≤0.12MPa | |
| Maximum Inlet Pressure | 0.2 MPa | 0.2MPa | |
| Backwashing flux rate |
1.5-2.0 times of Permeating Flux |
1.5-2.0 times of Permeating Flux |
|
| Backwashing times | Once per 30-120 minutes | Once per 30-120 minutes | |
| Chemical cleaning online during backwashing | Once per 7-14 days | Once per 7-14 days |
The structure as the following:2.2.2 type A of 8 inches UF module.
|
Size and weight
|
Model | KH-UF-8040W-PVDF | KH-UF-8060W-PVDF |
| Module Diameter ( A, mm) | Φ200 mm | Φ200 mm | |
| Module Length ( B, mm) | 1220 mm | 1640 mm | |
| Module Length (C, mm) | 1365 mm | 1785 mm | |
| Size of Inlet/Outlet | DN50 | DN50 | |
| Operating Type | Outside to Inside | Outside to Inside | |
| Membrane Area | 30 m2 | 45 m2 | |
| Dry weight of the module | 20 Kg | 35 Kg | |
|
Parameters |
Shell material | UPVC | UPVC |
| Membrane Material | PVDF | PVDF | |
| Membrane pore size | 0.03μm | 0.03μm | |
| Inner diameter of the hollow fiber | 0.7 mm | 0.7 mm | |
| Outer diameter of the hollow fiber | 1.3mm | 1.3mm | |
| Turbidity of Permeating water | ≤ 0.2NTU | ≤ 0.2 NTU | |
|
SDI value of permeating water
|
≤ 3 | ≤ 3 | |
|
Flux rate for of purified water (0.10MP,20℃) |
≥ 3600L/H | ≥ 5400L/H | |
|
Typical Process
|
Temperature Range | 5-45 ℃ | 5-45 ℃ |
| PH Value Range | 2-13 | 2-13 | |
|
Permeating Flux rate for different Water |
40 - 80 l/m2/hr | 40 -80 l/m2/hr | |
| Operating Pressure | ≤0.12 MPa | ≤0.12MPa | |
| Maximum Inlet Pressure | 0.2 MPa | 0.2MPa | |
| Backwashing flux rate |
1.5-2.0 times of Permeating Flux |
1.5-2.0 times of Permeating Flux |
|
| Backwashing times | Once per 30-120 minutes | Once per 30-120 minutes | |
| Chemical cleaning online during backwashing | Once per 7-14 days | Once per 7-14 days |
2.2.3 type B of 8 inches UF module. The structure as the following:
|
Size and weight
|
Model | KH-UF-SFX2860-PVDF | KH-UF-SFX2880-PVDF |
| Module Diameter (OD, mm) | Φ225 mm | Φ225 mm | |
| Module Length ( L1, mm) | 1500 mm | 2000 mm | |
| Module Length (L2, mm) | 1630 mm | 2130 mm | |
| Module Length (L3, mm) | 1820 mm | 2320 mm | |
| Module Length (L , mm) | 1860 mm | 2360 mm | |
| Operating Type | Outside to Inside | Outside to Inside | |
| Membrane Area | 52 m2 | 77 m2 | |
| Dry weight of the module | 42 Kg | 62 Kg | |
|
Parameters |
Shell material | UPVC | UPVC |
| Membrane Material | PVDF | PVDF | |
| Membrane pore size | 0.03μm | 0.03μm | |
| Inner diameter of the hollow fiber | 0.7 mm | 0.7 mm | |
| Outer diameter of the hollow fiber | 1.3mm | 1.3mm | |
| Turbidity of Permeating water | ≤ 0.2NTU | ≤ 0.2 NTU | |
|
SDI value of permeating water
|
≤ 3 | ≤ 3 | |
|
Flux rate of purified water (0.10MP,20℃) |
≥ 6500L/H | ≥ 8000L/H | |
|
Typical Process
|
Temperature Range | 5-45 ℃ | 5-45 ℃ |
| PH Value Range | 2-13 | 2-13 | |
|
Permeating Flux rate for different Water |
40 - 80 l/m2/hr | 40 -80 l/m2/hr | |
| Operating Pressure | ≤0.12 MPa | ≤0.12MPa | |
| Maximum Inlet Pressure | 0.2 MPa | 0.2MPa | |
| Backwashing flux rate |
1.5-2.0 times of Permeating Flux |
1.5-2.0 times of Permeating Flux |
|
| Backwashing times | Once per 30-120 minutes | Once per 30-120 minutes | |
| Chemical cleaning online during backwashing | Once per 7-14 days | Once per 7-14 days |

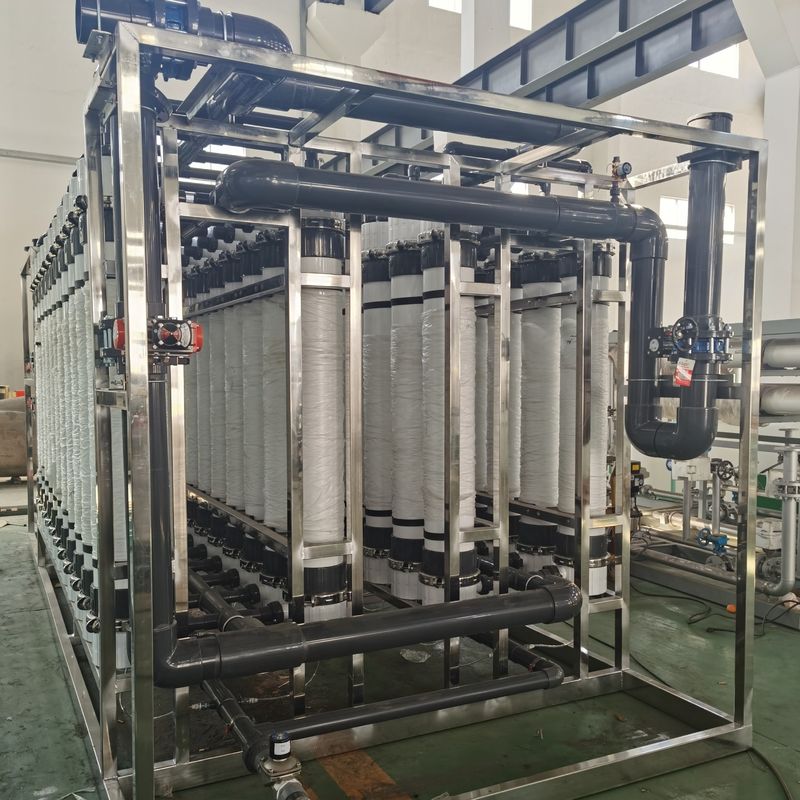

The whole installation and application process of our MBR modules are described as the following photo:
