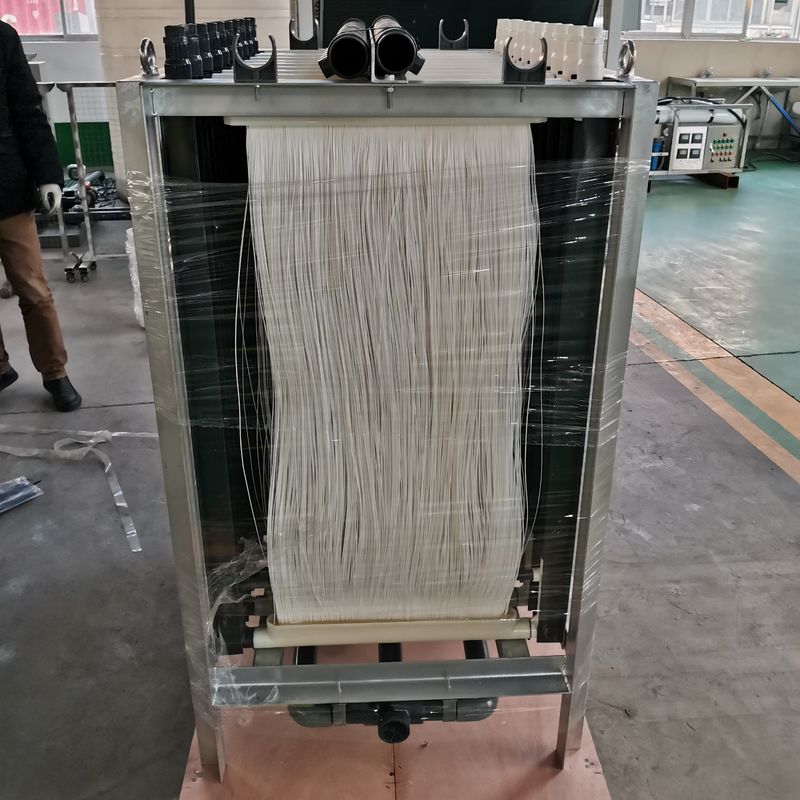

1550mm MBR Filter Membrane
  • 1550mm MBR Filter Membrane
  • 1550mm MBR Filter Membrane
  • 1550mm MBR Filter Membrane

1550mm MBR Filter Membrane

Place of Origin China
Brand Name CNKHONG
Model Number KH-MBR-25-Co-PVDF
Product Details
Material:
Reinforced PVDF
OD/ID:
2.2/1.0mm
Size:
1810x1250x47mm
Flux Rate:
15-20LMH
Transmembrane Pressure:
-0.08MPa
Temperature Scope:
1-40C
High Light:

1550mm MBR Filter Membrane

,

500ppm MBR Filter Membrane

,

3000ppm pvdf ultrafiltration membrane

Product Description

 MBR Membrane Elements for Wastewater Treatment with PVDF material





1. MBR Introduction

Hot selling submerged MBR Membrane Bioreactor for Pharmaceutical wastewater treatment is a new-type water treatment technology, integrated with membrane separation unit and biological treatment unit. ( MBR Membrane Microfiltration Systems -- Submerged Membrane Bio-Reactor is used instead of secondary sedimentation tank in the bioreactor to maintain high activated sludge concentration and reduce the land area of wastewater treatment facility and the sludge amount through maintaining low sludge load. The MBR membrane can completely block and retain the microorganisms in the bioreactor through its filtration function, which achieves the complete separation between the hydraulic retention time and activated sludge age, thus avoiding the sludge expansion problem of conventional activated sludge process. Compared with conventional biological water treatment technology, MBR technology has the following main characteristics including high treatment efficiency, good outlet water quality, compact layout, small footprint, easy automatic control and easy operation management.


Hot selling submerged MBR Membrane Bioreactor for Pharmaceutical wastewater treatment, which is so called ‘King of Plastics’.PTFE membrane is much more competitive in strong strength, higher flux, better anti-pollution and longer service life. MBR Membrane Microfiltration Systems -- Submerged Membrane Bio-Reactor is a suspended growth-activated sludge system that utilizes micro porous membranes for solid/liquid separation instead of secondary clarifiers. Membrane filter wastewater treatment machine uses precision filter membranes having pore sizes of 0.1 µm. MBR treated water can be used for landscaping, toilet flushing, and a variety of other applications.



2. Application

1) Municipal Wastewater Treatment Plant For Waste

2) Agricultural/fishery community wastewater treatment plant
3) Industrial wastewater treatment plant
4) Food/beverage production plants
5) Dairy farming/Meat processing plants
6) Wastewater Treatment Plant For Waste
7) Machinery manufacturing/Metal processing plants
8) Laundry wastewater
9) Other MBR bioreactor system (paper manufacturing, building material manufacturing, oilfield with crude oil mining, etc. )

3. Technical Parameter of Membrane Module



Item/Model KH-MBR-8-CO-PVDF KH-MBR-12-CO-PVDF KH-MBR-15-CO-PVDF
Membrane Area(M2) 8 12 15
Height 1050 mm 1550 mm 1550 mm
Width 645 mm 645mm 645 mm
Thickness 47 mm 47mm 47mm
Dry Weight 6kgs 10kgs 15 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium hypochlorite 500-3000ppm Sodium hypochlorite

500-3000ppm

Sodium hypochlorite



Item/Model KH-MBR-25-CO-PVDF KH-MBR-30-CO-PVDF KH-MBR-35-CO-PVDF
Membrane Area(M2) 20 30 35
Height 1550 mm 1810 mm 1810 mm
Width 1040 mm 1040 mm 1250 mm
Thickness 47 mm 47mm 35 mm
Dry Weight 20 kgs 25 kgs 30 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium Hypochlorite

500-3000ppm

Sodium Hypochlorite

500-3000ppm

Sodium hypochlorite



2. Typical parameters of MBR units.



1603176159(1)



4.Structure of Membrane Modules and Frames:



A. Structure of MBR Modules

1550mm MBR Filter Membrane 1











B.Structure of MBR Frames

1550mm MBR Filter Membrane 2









5. Product Features



-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

      -- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

      -- Every modules have flexible tubes connecting to collecting pipes.

      -- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

      -- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

      -- Permanent Hydrobility Membrane

      -- Strong strength, the broken strength more than 50MPa



6. Application of MBR Units:

      The whole installation and application process of our MBR modules are described as the following photo:



A. MBR unit of KH-MBRMD-8×8-CO-PVDF with total membrane area of 64 m2/unit.



1550mm MBR Filter Membrane 3





B. MBR unit of KH-MBRMD-15×60-CO-PVDF with total membrane area of 840 m2/unit.



1550mm MBR Filter Membrane 4
