Domestic Wastewater Treatment MBR Membrane Module with PVDF 0.05 pore size
1. MBR Introduction
1.Introduction
It is a kind of new technology for waste water treatment by combining membrane separation technique with activated sludge method. It can be used for municipal sewage and industrial waste water treatment and substitute for secondary sedimentation tank in removing suspended particles, so as to increase nitrogen removal rate and organics degradation rate.
2.Advantages
As a waste water treatment system features simple operation, high automation and modular design, it also has below advantages.
1) Save 50% occupying area compared with traditional system.
2) Relative high MLSS value(<15g/L) and long residue time for sludge(<60days)
3) Stable producting water quality for different inlet water.
4) Less sludge residue reduces cost for sludge treatment .
5) Low energy consumption, simple cleaning and low opreation cost
3. Technical Parameter of Membrane Module
| Item/Model | KH-MBR-8-CO-PVDF | KH-MBR-12-CO-PVDF | KH-MBR-15-CO-PVDF |
| Membrane Area(M2) | 8 | 12 | 15 |
| Height | 1050 mm | 1550 mm | 1550 mm |
| Width | 645 mm | 645mm | 645 mm |
| Thickness | 47 mm | 47mm | 47mm |
| Dry Weight | 6kgs | 10kgs | 15 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium hypochlorite | 500-3000ppm Sodium hypochlorite |
500-3000ppm Sodium hypochlorite |
| Item/Model | KH-MBR-25-CO-PVDF | KH-MBR-30-CO-PVDF | KH-MBR-35-CO-PVDF |
| Membrane Area(M2) | 20 | 30 | 35 |
| Height | 1550 mm | 1810 mm | 1810 mm |
| Width | 1040 mm | 1040 mm | 1250 mm |
| Thickness | 47 mm | 47mm | 35 mm |
| Dry Weight | 20 kgs | 25 kgs | 30 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium hypochlorite |
2. Typical parameters of MBR units.
| Item/Model | KH-MBRMD-25×20 | KH-MBRMD-25×25 | KH-MBRMD-25×30 |
| Quantity of MBR modules |
20 pcs of MBR-25 modules |
25pcs MBR-25 modules |
30 pcs MBR-25 modules |
| Total Membrane Area(M2) | 500 | 625 | 750 |
| Length | 1550 mm | 1875 mm | 2200 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2000 mm | 2000 mm | 2000 mm |
| Estimated Weight | 750 kgs | 940 kgs | 1125 kgs |
| Item/Model | KH-MBRMD-30×40 | KH-MBRMD-30×45 | KH-MBRMD-30×50 |
| Quantity of MBR modules |
40 pcs of MBR-30 modules |
45 pcs MBR-30 modules |
50 pcs MBR-30 modules |
| Total Membrane Area(M2) | 1200 | 1350 | 1500 |
| Length | 2850 mm | 3175 mm | 3500 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2200 mm | 2200 mm | 2200 mm |
| Estimated Weight | 1680 kgs | 1800 kgs | 2000 kgs |
4.. Structure of Membrane Modules and Frames:
A. Structure of MBR Modules

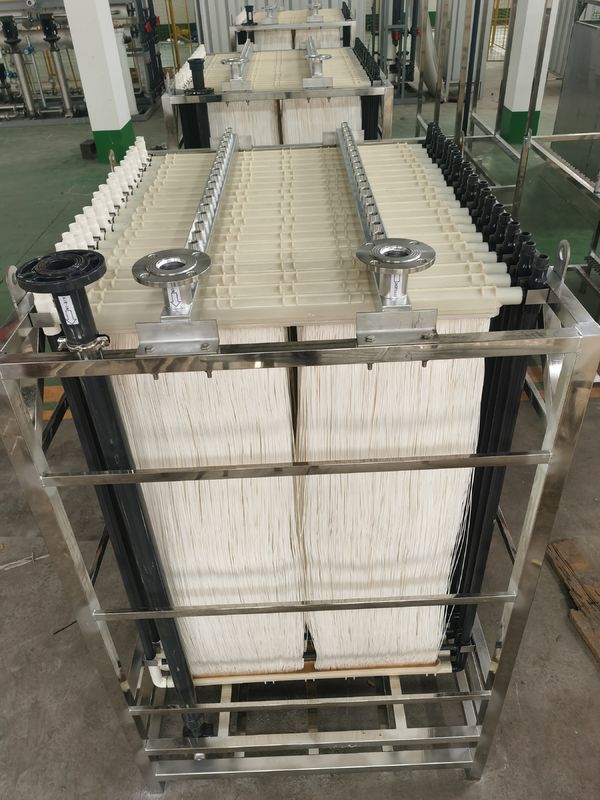

B.Structure of MBR Frames
5. Product Features
1. Strong Performance of Anti-pollution
PVDF hollow fiber membrane with inner reinforced support which has excellent surface permeability due to patented nano-reinforcement technology.
2. Long Service Life
Reinforced membrane structure, whose tensile strength of membrane filter is over 400N, can resist repeated air scrubbing and chemical cleaning.
3. Unique Integrated Aerator
Patented aeration technology eliminates bottom boundary separation layer, avoids dead space of aeration, relief membrane pollution at the bottom, reduces aeration volume, and greatly improves aeration efficiency.
4. Modular Design
According to capacity, add or reduce membrane module. Easy for installation, replacement and maintenance as well as good sealing performance.
5. Stable Effluent Performance
Base on narrow pore size distribution, Suntar MBR membrane has good effluent quality, with turbidity less than 0.1 NTU.
6. Application of MBR Units:
The whole installation and application process of our MBR modules are described as the following photo:
Why Choose US?
1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.
Our Service
1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty
