840m2/Unit Hollow Fiber MBR Sewage Treatment Plant With Braided Tube

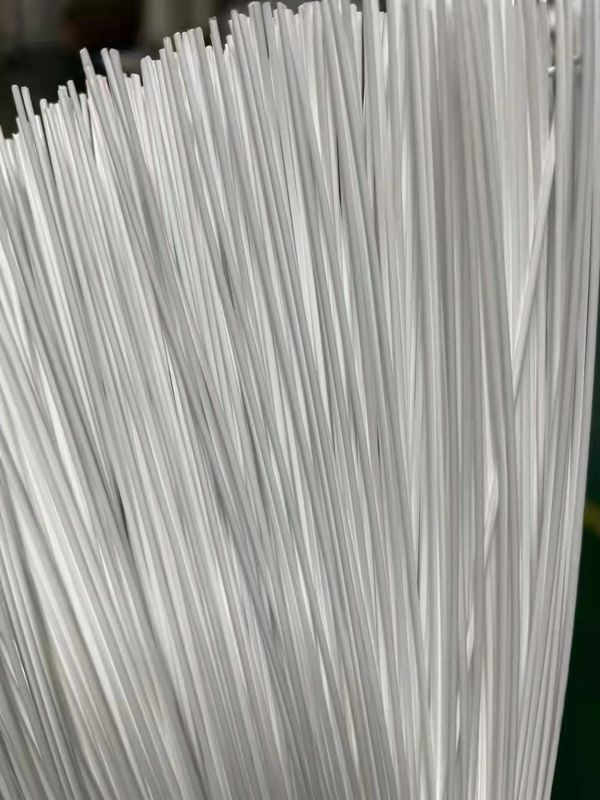

 Hollow Fiber Membrane with Braided Tube for Sewage Treatment Plant

Membrane Bio Reactor (MBR) is a new technology that has been more and more widely adopted in municipal and industrial waste water treatment. With the advantage of combining a suspended-growth biological reactor with solids removal via membrane filtration, it overcomes many of the limitations of conventional systems. The activated sludge and macro molecular organic matters are intercepted in the biological reaction tank and elimination of secondary clarifiers is allowed. As a result, the concentration of activated sludge is greatly increased, the Hydraulic Retention Time (HRT) and Sludge Retention Time (SRT) can be controlled separately, while the refractory solids are continuously degraded in the reactor. Therefore, MBR technology greatly enhances the effect of conventional bio reactor through membrane separation technology. Compared with traditional biological treatment methods, it has the advantages of high biochemical efficiency, strong resistance to load impact, stable effluent quality, small footprint, long sludge discharge period and easy to realize automatic control, etc. It is one of the most promising new waste water treatment technologies at present.

1. Technical Parameter of Membrane Module

2. Typical parameters of MBR units.

4. Product Features

-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

-- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

-- Every modules have flexible tubes connecting to collecting pipes.

-- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

-- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

-- Permanent Hydrobility Membrane

-- Strong strength, the broken strength more than 50MPa

-- Excellent performance and Low cost

5. Application of MBR Units:

The whole installation and application process of our MBR modules are described as the following photo:

A. MBR unit of KH-MBRMD-30×28-CO-PVDF with total membrane area of 840 m2/unit.

7. Why Choose US?

1). Over 16 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system
6). Located in Jiangsu, convenient export transportation.

8. Our Service

1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like pp, PVDF,reinforced PVDF etc.,can be customize according to your requirements
5). 12months warranty

9. FAQ

Q: Are you trading company or manufacturer?
A:We are the leading professional manufacturer in China, more than 16 years experience in the waste water treatment.
Q:What about the lead time?
A:Sample needs within 3 days, mass production needs 1-2 weeks after down payment.
Q:Can I have a sample order for UF/MBR Membrane?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Is it acceptable to print my logo on UF Membrane product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
