2100m2 Industrial Wastewater Biochemical Treatment MBR Membrane with PVDF 0.05 pore size
1. MBR Introduction
MBR hollow fiber membrane modules from ORIGINBLUE can be used in treating various industrial and municipal wastewater of variable water quality. We have the capability to provide professional technical support that
includes in-house design consultation, selection of optimal process flow and after sales support to our customers. OR is committed to its customers worldwide by providing cost-effective, reliable and sustainable solutions with its innovative and customer-centered MBR systems.
Product features and benefits
• Excellent quality product water
• Low capital cost and compact design
• Ease of maintenance
Application
Broad range of application for the treatment of high BOD and/or suspended solids containing wastewater from:
1. Municipal sewage treatment
2. Industrial wastewater treatment including chemical waste and food waste
3. Livestock wastewater treatment
4. Landfill leachate treatment
2. Application
1.Domestic wastewater application.
2. Municipal wastewater application.
3.Food and beverage industry application
4.Fermentation industry application
5.Environmental protection industry
3. Technical Parameter of Membrane Module
| Item/Model | KH-MBR-8-CO-PVDF | KH-MBR-12-CO-PVDF | KH-MBR-15-CO-PVDF |
| Membrane Area(M2) | 8 | 12 | 15 |
| Height | 1050 mm | 1550 mm | 1550 mm |
| Width | 645 mm | 645mm | 645 mm |
| Thickness | 47 mm | 47mm | 47mm |
| Dry Weight | 6kgs | 10kgs | 15 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium hypochlorite | 500-3000ppm Sodium hypochlorite |
500-3000ppm Sodium hypochlorite |
| Item/Model | KH-MBR-25-CO-PVDF | KH-MBR-30-CO-PVDF | KH-MBR-35-CO-PVDF |
| Membrane Area(M2) | 20 | 30 | 35 |
| Height | 1550 mm | 1810 mm | 1810 mm |
| Width | 1040 mm | 1040 mm | 1250 mm |
| Thickness | 47 mm | 47mm | 35 mm |
| Dry Weight | 20 kgs | 25 kgs | 30 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium hypochlorite |
2. Typical parameters of MBR units.
| Item/Model | KH-MBRMD-25×20 | KH-MBRMD-25×25 | KH-MBRMD-25×30 |
| Quantity of MBR modules |
20 pcs of MBR-25 modules |
25pcs MBR-25 modules |
30 pcs MBR-25 modules |
| Total Membrane Area(M2) | 500 | 625 | 750 |
| Length | 1550 mm | 1875 mm | 2200 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2000 mm | 2000 mm | 2000 mm |
| Estimated Weight | 750 kgs | 940 kgs | 1125 kgs |
| Item/Model | KH-MBRMD-30×40 | KH-MBRMD-30×45 | KH-MBRMD-30×50 |
| Quantity of MBR modules |
40 pcs of MBR-30 modules |
45 pcs MBR-30 modules |
50 pcs MBR-30 modules |
| Total Membrane Area(M2) | 1200 | 1350 | 1500 |
| Length | 2850 mm | 3175 mm | 3500 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2200 mm | 2200 mm | 2200 mm |
| Estimated Weight | 1680 kgs | 1800 kgs | 2000 kgs |
4.. Structure of Membrane Modules and Frames:
A. Structure of MBR Modules
B.Structure of MBR Frames
5. Product Features
-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.
-- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.
-- Every modules have flexible tubes connecting to collecting pipes.
-- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.
-- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.
-- Permanent Hydrobility Membrane
-- Strong strength, the broken strength more than 50MPa
6. Application of MBR Units:

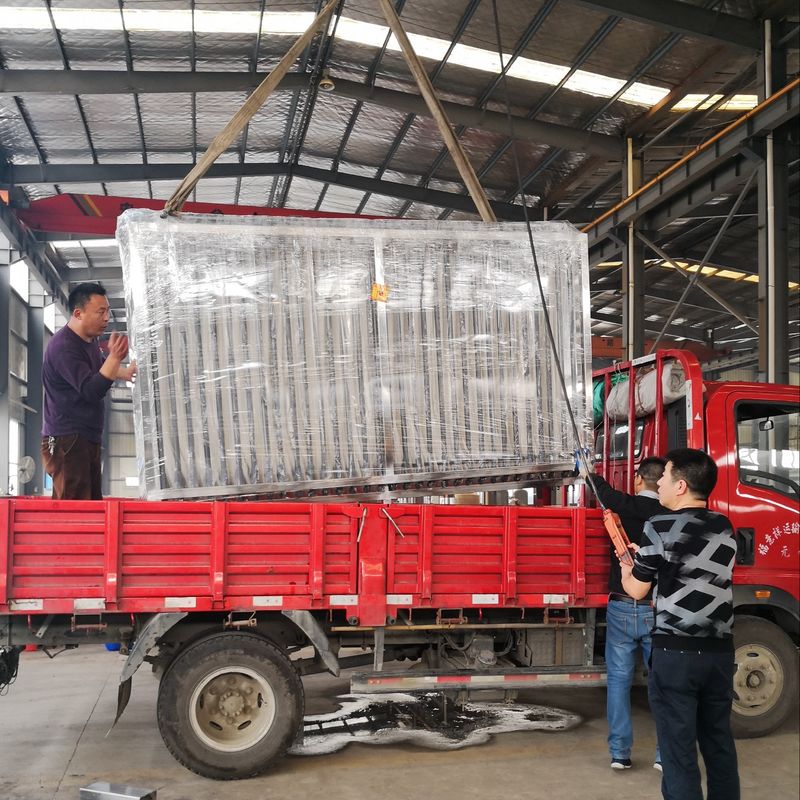

The whole installation and application process of our MBR modules are described as the following photo:
Why Choose US?
1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.
Our Service
1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty
