15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module
  • 15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module
  • 15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module

15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module

Place of Origin China
Brand Name CNKHONG
Model Number KH-MBR-15-Co-PVDF
Product Details
Material:
PVDF
OD/ID:
2.2/1.0mm
Size:
1550x645x47mm
Flux Rate:
15-20LMH
Transmembrane Pressure:
-0.08MPa
Temperature Scope:
1-40C
Dia Of Water-in:
DN25
Dia Of Water-out:
DN25
High Light:

15M2 MBR Membrane Module

,

1.0mm MBR Membrane Module

,

hollow fiber membrane module 20LMH

Product Description

15M2 MBR Membrane Elements for Wastewater Treatment with PVDF material



1. Introduction of MBR





Hollow fiber membrane is a type of membrane used in filtration processes that separates particles or impurities from a liquid. This membrane is made up of small, tube-like structures with pores on their walls, allowing the liquid to pass through while retaining the particles or impurities.

One of the advantages of hollow fiber membrane is its high surface area to volume ratio. The small, tube-like structure of the membrane provides a large surface area for filtration, allowing for a high flow rate and efficient removal of impurities.

Hollow fiber membrane can be made from a variety of materials, including polyethylene, polypropylene, and polysulfone. These materials offer a range of properties such as chemical resistance, durability, and thermal stability, making them suitable for various applications.

Hollow fiber membrane is commonly used in water treatment, including seawater desalination, wastewater treatment, and drinking water purification. It is also used in the food and beverage industry for the filtration of juices, wines, and other liquids.

Overall, hollow fiber membrane is an effective and versatile membrane technology with numerous applications. Its high surface area to volume ratio, high flow rate, and efficient impurity removal make it an ideal choice for a variety of filtration processes.

2. Advantages of MBR



Hollow fiber membranes offer several advantages over other types of filtration technologies, including:

  1. High surface area to volume ratio: Hollow fiber membranes have a small diameter and are made up of many tiny tubes, providing a large surface area for filtration. This allows for a high flow rate and efficient removal of impurities.

  2. Selective filtration: Hollow fiber membranes can be designed to selectively remove specific impurities based on their size and charge. This makes them ideal for use in water treatment, where the removal of contaminants such as bacteria, viruses, and dissolved solids is essential.

  3. Compact size: Hollow fiber membranes have a small footprint and can be easily integrated into existing systems. This makes them ideal for use in areas where space is limited.

  4. Low energy consumption: Hollow fiber membrane filtration requires less energy compared to other technologies such as reverse osmosis. This reduces operating costs and makes them an environmentally friendly choice.

  5. Easy maintenance: Hollow fiber membranes are easy to maintain, with simple cleaning and replacement procedures. This reduces downtime and ensures continuous operation of the filtration system.

3. Technical Parameter of Membrane Module



Item/Model KH-MBR-8-CO-PVDF KH-MBR-12-CO-PVDF KH-MBR-15-CO-PVDF
Membrane Area(M2) 8 12 15
Height 1050 mm 1550 mm 1550 mm
Width 645 mm 645mm 645 mm
Thickness 47 mm 47mm 47mm
Dry Weight 6kgs 10kgs 12 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium hypochlorite 500-3000ppm Sodium hypochlorite

500-3000ppm

Sodium hypochlorite



Item/Model KH-MBR-25-CO-PVDF KH-MBR-30-CO-PVDF KH-MBR-35-CO-PVDF
Membrane Area(M2) 25 30 35
Height 1560 mm 1810 mm 1810 mm
Width 1040 mm 1040 mm 1250 mm
Thickness 47 mm 47mm 35 mm
Dry Weight 20 kgs 25 kgs 30 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium Hypochlorite

500-3000ppm

Sodium Hypochlorite

500-3000ppm

Sodium hypochlorite



2. Typical parameters of MBR units.



1603176159(1)



4.Structure of Membrane Modules and Frames:



A. Structure of MBR Modules

15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module 1











B.Structure of MBR Frames

15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module 2









5. Product Features



-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

      -- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

      -- Every modules have flexible tubes connecting to collecting pipes.

      -- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

      -- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

      -- Permanent Hydrobility Membrane

      -- Strong strength, the broken strength more than 50MPa



6. Application of MBR Units:

      The whole installation and application process of our MBR modules are described as the following photo:

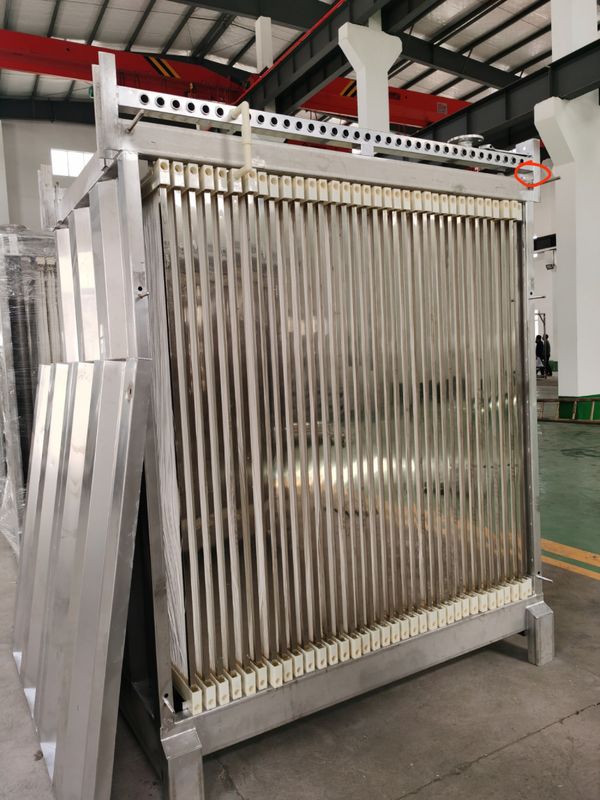

A. MBR unit of KH-MBRMD-15×28-CO-PVDF with total membrane area of 420 m2/unit.



15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module 3





B. MBR unit of KH-MBRMD-15×60-CO-PVDF with total membrane area of 900 m2/unit.



15M2 1.0mm MBR Membrane Module Hollow Fiber Membrane Module 4
