15 To 20LMH Mbr System Wastewater Treatment Mbr Technology For Wastewater Treatment
  • 15 To 20LMH Mbr System Wastewater Treatment Mbr Technology For Wastewater Treatment
  • 15 To 20LMH Mbr System Wastewater Treatment Mbr Technology For Wastewater Treatment
  • 15 To 20LMH Mbr System Wastewater Treatment Mbr Technology For Wastewater Treatment

15 To 20LMH Mbr System Wastewater Treatment Mbr Technology For Wastewater Treatment

Place of Origin China
Brand Name CNKHONG
Model Number KH-MBR-20-Co-PVDF
Product Details
Material:
Reinforced PVDF
OD/ID:
2.2/1.0mm
Size:
1810x1250x47mm
Flux Rate:
15-20LMH
Transmembrane Pressure:
-0.08MPa
Temperature Scope:
1-40C
High Light:

mbr system wastewater treatment

,

20LMH mbr system wastewater treatment

,

40C mbr technology for wastewater treatment

Product Description

Industrial Wastewater Treatment MBR Membrane Module with PVDF 0.05 pore size

Membrane bioreactors(MBR) for wastewater treatment is a combination of a suspended growth biological treatment method, usually activated sludge, with membrane filtration equipment, typically low-pressure microfiltration (MF) or ultrafiltration (UF) membranes. The membranes are used to perform the critical solid-liquid separation function. In activated sludge facilities, this is traditionally accomplished using secondary and tertiary clarifiers along with tertiary filtration. The two general types of MBR systems are vacuum (or gravity-driven) and pressure-driven systems. Vacuum or gravity systems are immersed and normally employ hollow fiber or flat sheet membranes installed in either the bioreactors or a subsequent membrane tank. Pressure driven systems are in-pipe cartridge systems located externally to the bioreactor

3. Technical Parameter of Membrane Module



Item/Model KH-MBR-8-CO-PVDF KH-MBR-12-CO-PVDF KH-MBR-15-CO-PVDF
Membrane Area(M2) 8 12 15
Height 1050 mm 1550 mm 1550 mm
Width 645 mm 645mm 645 mm
Thickness 47 mm 47mm 47mm
Dry Weight 6kgs 10kgs 15 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium hypochlorite 500-3000ppm Sodium hypochlorite

500-3000ppm

Sodium hypochlorite



An “MBR System” is considered to be a complete and integrated membrane unit (sub-systems) with related components necessary to allow the process to function as desired. An MBR system is often comprised of ten or eleven sub-systems and includes fine screening (headworks), the Membrane Zone and, in most cases, some type of post-disinfection process.

An MBR, or Membrane Zone, can best be described as the initial step in a biological process where microbes are used to degrade pollutants that are then filtered by a series of submerged membranes (or membrane elements). The individual membranes are housed in units known as modules, cassettes, or racks and a combined series of these modules are referred to as a working membrane unit. Air is introduced through integral diffusers to continually scour membrane surfaces during filtration, facilitate mixing and in some cases, to contribute oxygen to the biological process.

The benefits of MBR includes a reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration. The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation and reduced downstream disinfection requirements.



Item/Model KH-MBR-25-CO-PVDF KH-MBR-30-CO-PVDF KH-MBR-35-CO-PVDF
Membrane Area(M2) 20 30 35
Height 1550 mm 1810 mm 1810 mm
Width 1040 mm 1040 mm 1250 mm
Thickness 47 mm 47mm 35 mm
Dry Weight 20 kgs 25 kgs 30 kgs
Membrane material Reinforced PVDF Reinforced PVDF Reinforced PVDF
Micro pore size 0.05μm 0.05μm 0.05μm
ID/OD of Membrane 0.9/2.2mm 0.9/2.2mm 0.9/2.2mm
Suspend solid <5mg/L <5mg/L <5mg/L
Temperature 5-40℃ 5-40℃ 5-40℃
PH range 2~11 2~11 2~11
Flux for waste water 15~20 LMH 15~20 LMH 15~20 LMH
Operating Method Sucking out 8 mins and staying 2 mins Sucking out 8 mins and staying 2 mins

Sucking out 8 mins

and staying 2 mins

Cleaning Chemicals 500-3000ppm Sodium Hypochlorite

500-3000ppm

Sodium Hypochlorite

500-3000ppm

Sodium hypochlorite



2. Typical parameters of MBR units.

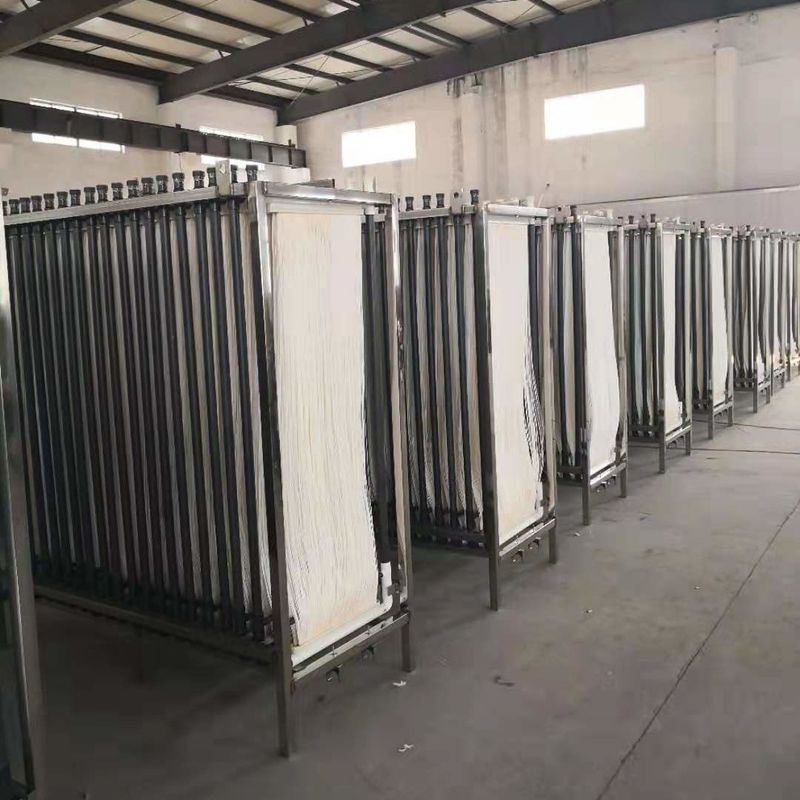

Item/Model KH-MBRMD-25×20 KH-MBRMD-25×25 KH-MBRMD-25×30
Quantity of MBR modules

20 pcs of

MBR-25 modules

25pcs

MBR-25 modules

30 pcs

MBR-25 modules

Total Membrane Area(M2) 500 625 750
Length 1550 mm 1875 mm 2200 mm
Width 1255mm 1255 mm 1255 mm
Height 2000 mm 2000 mm 2000 mm
Estimated Weight 750 kgs 940 kgs 1125 kgs



Item/Model KH-MBRMD-30×40 KH-MBRMD-30×45 KH-MBRMD-30×50
Quantity of MBR modules

40 pcs of

MBR-30 modules

45 pcs

MBR-30 modules

50 pcs

MBR-30 modules

Total Membrane Area(M2) 1200 1350 1500
Length 2850 mm 3175 mm 3500 mm
Width 1255mm 1255 mm 1255 mm
Height 2200 mm 2200 mm 2200 mm
Estimated Weight 1680 kgs 1800 kgs 2000 kgs
