| Place of Origin | China |
| Brand Name | CNKHONG |
| Model Number | KH-MBR-20-Co-PVDF |
Industrial Wastewater Treatment MBR Membrane Module with PVDF 0.05 pore size
Membrane Bioreactors are biological treatment plants which combines activated sludge process with submersed membrane filtration. Secondary settling tanks are replaced with membrane units. Complete solids removal, a significant bacteria removal capability, high rate and high efficiency organic removal and small footprint are the advantages of the MBR Systems.
The MBR process can be configured in many different ways depending on project specific nutrient removal objectives. Anoxic zones before or after the aerobic treatment may be used for denitrification, depending on the effluent nitrate and total nitrogen requirements. ESLI prefer submerged configuration because of less energy requirement and low fouling potential. In submerged configuration, a suction force is applied to draw the water through themembrane, while the sludge is retained on the membrane surface.
APPLICATIONS
• Municipal wastewater
• Educational institutions and healtcare applications
• Hotels, Labour and refugee camps, parks and military bases
• Building complexex (offices, shopping centers, small tornships)
• Industrial wastewater, e.g. food and beverage applications.
ADVANTAGES
• Secondary clarifiers and tertiary filtration processes are eliminated,
thereby reducing plant footprint.
• Unlike secondary clarifiers, the quality of solids separation is not
dependent on the mixed liquor suspended solids concentration or
characteristics.
• No reliance upon achieving good sludge settleability
• hence quite amenable to remote operation.
• Can be designed with long sludge age, hence low sludge
production.
• Produces a UF quality effluent suitable for reuse applications or as
a high quality feed water source for Reverse Osmosis treatment.
Technical Parameter of Membrane Module
| Item/Model | KH-MBR-8-CO-PVDF | KH-MBR-12-CO-PVDF | KH-MBR-15-CO-PVDF |
| Membrane Area(M2) | 8 | 12 | 15 |
| Height | 1050 mm | 1550 mm | 1550 mm |
| Width | 645 mm | 645mm | 645 mm |
| Thickness | 47 mm | 47mm | 47mm |
| Dry Weight | 6kgs | 10kgs | 15 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium hypochlorite | 500-3000ppm Sodium hypochlorite |
500-3000ppm Sodium hypochlorite |
| Item/Model | KH-MBR-25-CO-PVDF | KH-MBR-30-CO-PVDF | KH-MBR-35-CO-PVDF |
| Membrane Area(M2) | 20 | 30 | 35 |
| Height | 1550 mm | 1810 mm | 1810 mm |
| Width | 1040 mm | 1040 mm | 1250 mm |
| Thickness | 47 mm | 47mm | 35 mm |
| Dry Weight | 20 kgs | 25 kgs | 30 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium hypochlorite |

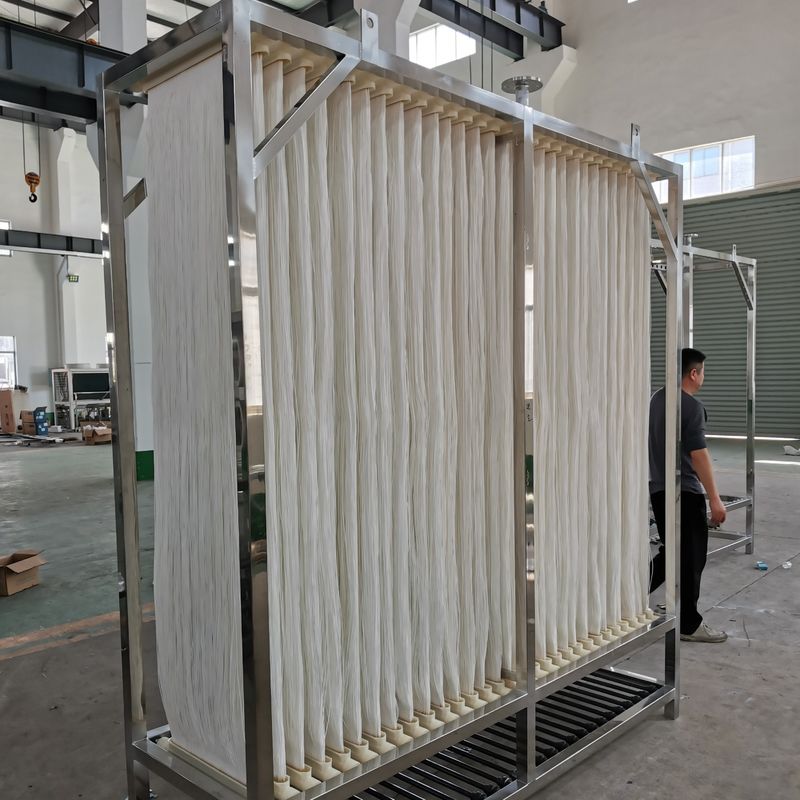

Typical parameters of MBR units.
| Item/Model | KH-MBRMD-25×20 | KH-MBRMD-25×25 | KH-MBRMD-25×30 |
| Quantity of MBR modules |
20 pcs of MBR-25 modules |
25pcs MBR-25 modules |
30 pcs MBR-25 modules |
| Total Membrane Area(M2) | 500 | 625 | 750 |
| Length | 1550 mm | 1875 mm | 2200 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2000 mm | 2000 mm | 2000 mm |
| Estimated Weight | 750 kgs | 940 kgs | 1125 kgs |
| Item/Model | KH-MBRMD-30×40 | KH-MBRMD-30×45 | KH-MBRMD-30×50 |
| Quantity of MBR modules |
40 pcs of MBR-30 modules |
45 pcs MBR-30 modules |
50 pcs MBR-30 modules |
| Total Membrane Area(M2) | 1200 | 1350 | 1500 |
| Length | 2850 mm | 3175 mm | 3500 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2200 mm | 2200 mm | 2200 mm |
| Estimated Weight | 1680 kgs | 1800 kgs | 2000 kgs |
Why Choose US?
1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.
