MBR Membrane Elements for Wastewater Treatment with PVDF material
Chemical Wastewater Biochemical Treatment MBR Membrane with PVDF 0.05 pore size
1. MBR Introduction
membrane bioreactor assembly is the core product in MBR wastewater treatment and recycling technology, through key technological breakthroughs such as fiber-reinforced hollow fiber membrane material design, high and low pulse aeration technology, trough aeration structure and three-position water collection , The system solves the technical problems of MBR technology membrane materials, membrane equipment investment and high operating energy consumption. It has realized the domestic substitution and large-scale application of MBR products for the first time, and its performance is at the world's leading level. One of the mainstream products. He has been awarded the "National Science and Technology Progress Second Prize, National Strategic Innovative Product, National Key New Product" and other scientific and technological honors, and is widely used in municipal, industrial, black and odorous water bodies and scattered point sources and other wastewater resource recycling projects of different sizes.
2. Application
1.Domestic wastewater application.
2. Municipal wastewater application.
3.Food and beverage industry application
4.Fermentation industry application
5.Environmental protection industry
3. Technical Parameter of Membrane Module
| Item/Model | KH-MBR-8-CO-PVDF | KH-MBR-12-CO-PVDF | KH-MBR-15-CO-PVDF |
| Membrane Area(M2) | 8 | 12 | 15 |
| Height | 1050 mm | 1550 mm | 1550 mm |
| Width | 645 mm | 645mm | 645 mm |
| Thickness | 47 mm | 47mm | 47mm |
| Dry Weight | 6kgs | 10kgs | 15 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium hypochlorite | 500-3000ppm Sodium hypochlorite |
500-3000ppm Sodium hypochlorite |
| Item/Model | KH-MBR-25-CO-PVDF | KH-MBR-30-CO-PVDF | KH-MBR-35-CO-PVDF |
| Membrane Area(M2) | 20 | 30 | 35 |
| Height | 1550 mm | 1810 mm | 1810 mm |
| Width | 1040 mm | 1040 mm | 1250 mm |
| Thickness | 47 mm | 47mm | 35 mm |
| Dry Weight | 20 kgs | 25 kgs | 30 kgs |
| Membrane material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Micro pore size | 0.05μm | 0.05μm | 0.05μm |
| ID/OD of Membrane | 0.9/2.2mm | 0.9/2.2mm | 0.9/2.2mm |
| Suspend solid | <5mg/L | <5mg/L | <5mg/L |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| PH range | 2~11 | 2~11 | 2~11 |
| Flux for waste water | 15~20 LMH | 15~20 LMH | 15~20 LMH |
| Operating Method | Sucking out 8 mins and staying 2 mins | Sucking out 8 mins and staying 2 mins |
Sucking out 8 mins and staying 2 mins |
| Cleaning Chemicals | 500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium Hypochlorite |
500-3000ppm Sodium hypochlorite |
2. Typical parameters of MBR units.
| Item/Model | KH-MBRMD-25×20 | KH-MBRMD-25×25 | KH-MBRMD-25×30 |
| Quantity of MBR modules |
20 pcs of MBR-25 modules |
25pcs MBR-25 modules |
30 pcs MBR-25 modules |
| Total Membrane Area(M2) | 500 | 625 | 750 |
| Length | 1550 mm | 1875 mm | 2200 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2000 mm | 2000 mm | 2000 mm |
| Estimated Weight | 750 kgs | 940 kgs | 1125 kgs |
| Item/Model | KH-MBRMD-30×40 | KH-MBRMD-30×45 | KH-MBRMD-30×50 |
| Quantity of MBR modules |
40 pcs of MBR-30 modules |
45 pcs MBR-30 modules |
50 pcs MBR-30 modules |
| Total Membrane Area(M2) | 1200 | 1350 | 1500 |
| Length | 2850 mm | 3175 mm | 3500 mm |
| Width | 1255mm | 1255 mm | 1255 mm |
| Height | 2200 mm | 2200 mm | 2200 mm |
| Estimated Weight | 1680 kgs | 1800 kgs | 2000 kgs |
4.. Structure of Membrane Modules and Frames:
A. Structure of MBR Modules
B.Structure of MBR Frames
5. Product Features
1. Strong Performance of Anti-pollution
PVDF hollow fiber membrane with inner reinforced support which has excellent surface permeability due to patented nano-reinforcement technology.
2. Long Service Life
Reinforced membrane structure, whose tensile strength of membrane filter is over 400N, can resist repeated air scrubbing and chemical cleaning.
3. Unique Integrated Aerator
Patented aeration technology eliminates bottom boundary separation layer, avoids dead space of aeration, relief membrane pollution at the bottom, reduces aeration volume, and greatly improves aeration efficiency.
4. Modular Design
According to capacity, add or reduce membrane module. Easy for installation, replacement and maintenance as well as good sealing performance.
5. Stable Effluent Performance
Base on narrow pore size distribution, Suntar MBR membrane has good effluent quality, with turbidity less than 0.1 NTU.
6. Application of MBR Units:

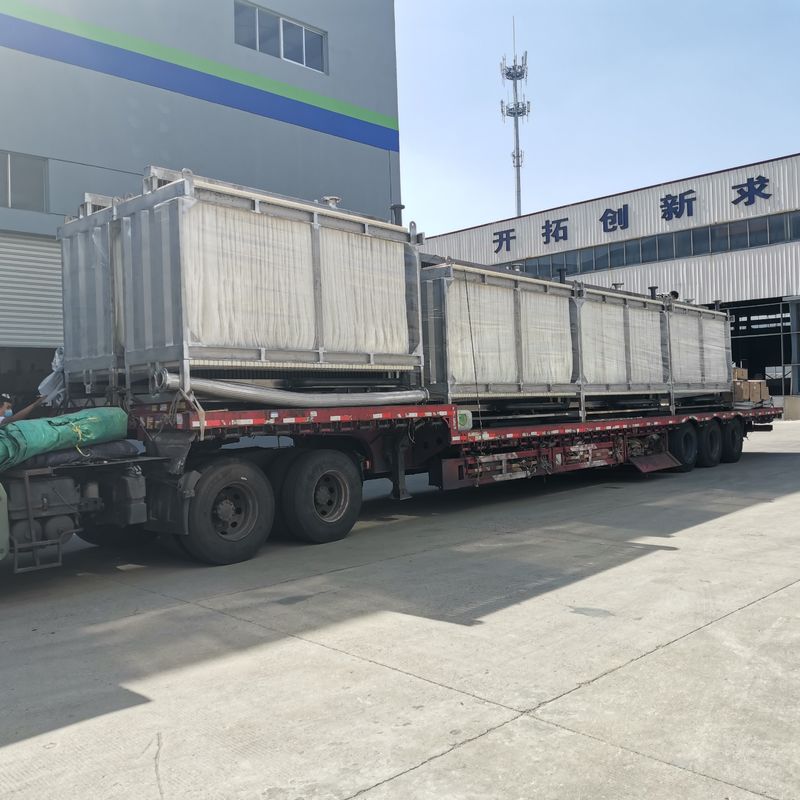

The whole installation and application process of our MBR modules are described as the following photo:
Why Choose US?
1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.
Our Service
1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty
